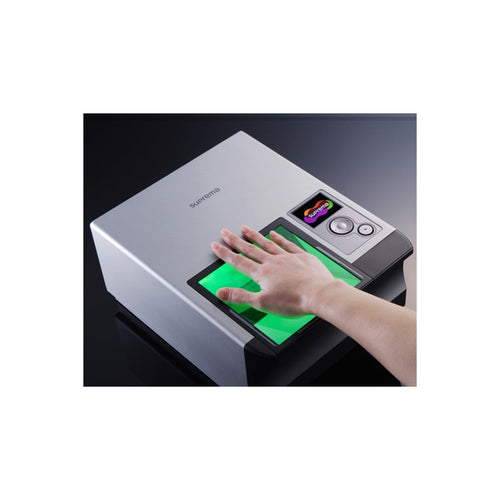

RealScan-F is a single platen palm-print live scanner for capturing various types of fingerprint including flats, rolls, palms and writer's palms. Featuring Suprema's cutting-edge optical & biometric technologies, it is capable of capturing highest quality images regardless the physical condition of fingers. RealScan-F also offers loads of user convenient features like color LCD display, voice instruction, foot switch and mobile power supply. With proven reliability of FBI certification, RealScan-F is designed to provide perfect live scanning solution for various criminal ID applications.

PLEASE NOTE, INTERNATIONAL DESTINATIONS REQUIRE AN EXPORT LICENSE FROM THE STATE DEPARTMENT. THE APPLICATION PROCESS CAN LAST UP TO 45 DAYS.

Features

FBI IAFIS IQS Appendix F Certification

The certification provides assurance to users that certified products meet or exceed FBI interoperability standards and will work with the Integrated Automated Fingerprint Information System (IAFIS). It ensures that the images used are high quality and support all phases of identification for fingerprint experts and the IAFIS. Appendix F has stringent image quality conditions, focusing on the human fingerprint comparison and facilitating large scale machine many-to-many matching operation.

Advanced Rolled Image Construction Technology (ARIC)

RealScan-F features Advanced Rolled Image Construction (ARIC) technology using Suprema's unique slip detection algorithm for constructing rolled fingerprint images. With ARIC technology, RealScan-F performs over 15 fps frame rate in roll capturing which ensures highest image quality and lower error rate in capturing sequences.

Powerful Internal DSP

Every RealScan-F equipped powerful 400MHz CPU which enables high-speed image processing in capturing, storing, processing and transferring. With the CPU, Suprema's unique Image Pre-Processing technique results more frame rates in capturing and & richer pixel throughput hence produces better image quality. It also minimizes device's initialization time to less than one second.

Intuitive Control Panel and Color LCD Display

All your settings and operations are easily confirmed in the wide 2.4" color LCD with clear, easy-to-read fonts & icons. RealScan-F also features a 5-way navigation button, an operating button & a pedal switch. LCD and buttons are conveniently located on top for simple, instant and hands-free operation. Most basic settings and operations are controllable from on-device buttons, without having to access the host PC.

5.2" Extra Wide Platen for Easier Capturing

Wide & solid, the RealScan-F's 5.2 inch platen is the largest size in its class and ensures easier capturing when placing hands. The solid & scratch-free surfaces makes it durable for many kinds of stains & damages.

Ergonomic Design & Construction

The RealScan-F body has been ergonomically crafted to allow obstruction-free use for all kinds of fingerprint capturing. Ideally indented front panel allows seamless hand moves in rolled print and two thumbs captures In addition, the platen area is precisely sealed to protect optical structure against invasive moisture, dust and even liquid spillage.

Tech Specs

Fingerprint Types	Single rolls & flats Four finger slaps Upper & lower palm prints Writer's palm prints
Resolution	500 dpi, 256 gray
Platen Size (W x L)	5.2" x 5.2"¬ù (132 x 132 mm)
Image Size (W x L)	Rolled Prints: 1.6"" x 1.5"" (41 x 38 mm) Palm Prints: 5.1"" x 5.1"" (129 x 129 mm)
Image Quality Standards	FBI IQS Appendix F
Ingress Protection	splash proof
Operating Temperature	0-50'C
Operating Humidity	From 10 to 90%, non-condensing
Dimension (W x L x H)	9.9" x 12.2"¬ù x 5.8" (252 x 313 x 148 mm)
Weight	6.0 kg
Power Supply	12VDC
Interface	USB 2.0 (data)
Operating Systems	Window 8, 7, Vista, XP, Linux(Ubuntu, Fedor)
Certificate(under progress)	FBI, WHQL, CE, FCC, UL, KCC
